Static ground retractable cable reel for paint and coating,Heavy Duty，vehicles，drums, oil tank

  Retractable Grounding Reel is designed to provide protection and static grounding alarm series of specialized companies in the petroleum, chemical, refining, oil depots, gas stations, gas stations and oil handling spaces, there are static earth clamp, Static Grounding Reel series of products. Including fixed, mobile, integrated, marine, automatic reel of six models, replace the battery free, die earth clamp body surface spray (especially for chemical, corrosive seaside and other places and humid environment), carbide tip (use without replacement), stainless steel wire rope anti-pull design ensures your safe and effective, especially in product design eliminates false ground on the market similar products in the current risks, to ensure safe and effective guide in addition to static electricity, improve the service directly face customers from your worries.

Industrial 10m Static ground retractable cable reel for tank trucks,petrochemical, pharmaceutical

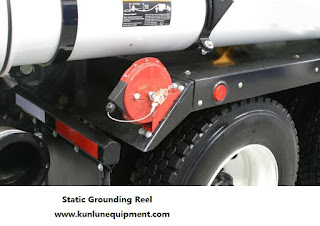

Static Grounding Reel with Alarm Product Description:

Static grounding reel is handling the case of oil antistatic standard standardized products, not only can static electricity generated during fluid transport into the earth, but also be able to automatically detect the entire grounding conditions. When bad or disconnect the ground, alarm sound, in order to ensure the production of safe operation.
   Static grounding KD-1293 products not only folders can be automatically recovered uniform, can locate anywhere in the drawing process, which greatly facilitates the operation. Shell is made of stainless steel and sophisticated appearance, moisture and corrosion resistance,Static Grounding System is in high-end products.

Use:

1, gas stations unloading port;

2, filling stations and the terminals;

3, chemical plants and other liquid chemicals unloading sites;

4, others such as paint, pharmaceutical, etc.

Static Grounding Bonding Clamps for cable，tank trucks,hazardous locations

  To discharge the static accumulation of hazardous products during transportation, we provide different kinds of static grounding clamps with cables for petrochemical, pharmacuitical, paint and coating industries. The contact tips on the clamp head are made out of special alloy. The mighty spring and the clamp body can form the lever, with its mighty pressure, the sharp and hardened contact tips can penetrate the paint and rust.

Fuel, chemical means Royal place; fuel filling stations, paints, coatings, oil refining, chemical, pharmaceutical production and processing zone; airports, oil tankers, ships and rail tankers loading Royal place; chemical storage tank, removable roof; other places need static grounding

Static Grounding Clamps :https://www.youtube.com/watch?v=ABvnzbNroH4

Grounding Clamps and cable for truck,road tankers,aircraft

1. The tungsten carbide teeth: Make sure the grounding clip to establish and maintain a low resistance connection with the ground equipment.

2. Anti-dither: Make sure the grounding clip connected to the vibrating device can maintain a good connection.

3. Static Grounding Clamps resistance to mechanical traction: Make sure the grounding clip will not pull out from the ground equipment.

TPE cable antistatic coating with excellent chemical resistance and wear resistance, for a variety of extreme environments (-40 ℃ to + 80 ℃), many different applications such as chemical, petrochemical, pharmaceutical and oil sea ideal for industrial processes.

4. TPE cable typically associated with FM and ATEX-certified for use in static grounding clamp.

Static Grounding System :http://www.kunlunequipment.com

Automatic Static Grounding Reel for Tank Truck

 1. The need to replace the battery during the ultra-low-power design, the normal use;
 2. Easy to operate, on duty 24 hours a day;
 3. The overall epoxy resin sealing, corrosion resistance, waterproof, moisture-proof;
 4. Provide audible alarm, to keep abreast of the working status;
 5. detect static grounding resistor ≤55Ω;
 6. The alarm continued for 8 minutes, automatically enter hibernation, reconnect the line immediately wake;
 7. The Static Grounding Clamps strong elasticity, broken rust paint, to ensure reliable grounding.

Retractable Static Grounding Reel :https://www.youtube.com/watch?v=UslVfhLc_SI

Static grounding reels coax cable installation

 1. Power supply: high-performance built-in lithium battery
 2. Operating Current: <5mA
 3. Working temperature: -40 ℃ ~ 60 ℃
 4. Response time: <1s
 5. sense resistor: <55Ω
 6. Explosion levels: ExiaIICT4
 7. Alarm: audible alarm (> 90dB, 30cm straight line distance measurement)
 8. Cable length: static grounding reel lengths of 5 meters and 3 meters, can be customized according to customer demand

Overfill Prevention Device :http://www.kunlunequipment.com

Overfill Prevention Controller

Introduction:

During fuelling operations, the Overfill Prevention Controller automatically shuts off the loading operations if the liquid reaches the overfill sensor.

Spill Prevention Equipment is used to monitor the liquid level of the tanker truck.

Specifications:
    Input Power: 24VDC
    Input Current: ＜60mA
    Output Signal: On-off signal
    alarm: visible alarm
    Respond Time: ＜2 Seconds
    Operation Temperature: -40℃ to +60℃(-40℉to +140℉)
    Alarm Volume: ＞90dB
    Certification: ExiaIIBT4

Features & Benefits:
    ※ Audible and visible alarm

   ※ The overfill sensor has a continuous check and alert feature to ensure the system is working properly.

Packaging & Shipping:

Each one is packaged in one carton (Carton Size: 38*31*21cm)
Shipping is depended on customer, either by sea or courier such as FedEx, DHL, TNT or UPS
Lead Time: 7 days after the payment

Overfill Protection :

https://www.youtube.com/watch?v=nuEcFvBJ3PQ

Overfill Prevention Device :http://www.kunlunequipment.com

Static Ground Monitoring

Introduction:

During fuelling, loading and unloading operations, the vehicles should always be grounded. The Static Grounding Monitor will automatically shut off the loading and unloading operation if the ground is broken at any time during the operation.

The Static Ground Monitoring provides a visual green light indicating a confirmed grounding condition of the vehicles during the transfer of flammable and combustible materials. A red light indicates the absence of a dependable ground. An interlock circuit within the Static Grounding Monitor will prevent pumps and equipment from starting until a satisfactory ground is established. The interlock circuit will also shut off pumps and equipment if the ground is lost during the pumping operation.

Specifications:
    Input Power: 85VAC to 250VAC ( 24VDC) @47 to 440 Hz
    Input Current: ＜50mA
    Material: Aluminum
    Output Signal: On-off signal
    Monitoring Set Point: 60 ohms
    Alarm: Visible alarm
    Spiral cable: Extendable to 6m (20ft.)
    Indicator: One lamp (Green=satisfactory ground and red=no ground)
    Operation Temperature: -40℃ to +60℃(-40℉to +140℉)
    Certification: Exd [ia]IIBT4

Packaging & Shipping:                                                                                                                   Each one is packaged in one carton box (diamensions:35cm * 20cm * 28cm)

Shipping is depended on customer, either by sea or courier such as FedEx, DHL, TNT or UPS

Lead Time: 7 days after the payment

Static Grounding Clamps :

https://www.youtube.com/watch?v=ABvnzbNroH4

Static Grounding Clamp with Green Cable

Professional design, rugged stainless steel body, tungsten carbide teeth, with a strong penetration and abrasion resistance
1, the standard configuration: 6m decay spiral. It can provide different line length of static grounding line to meet the needs of different occasions.
2, anti-static grounding clamp to the top located high-strength alloy thimble can effectively get rid of paint, rust, oil, ensure reliable grounding.
3,Static Grounding Clamps  a constant force spring clip body built, elastic constant kneading 30,000 times

Overfill Prevention Device :http://www.kunlunequipment.com

anti static grounding wire earthing clamp

Static grounding clamps in the petrochemical, pharmaceutical, paint and other fields, to eliminate flammable liquids in transit accumulation of static electricity hazard is a very important measure to prevent static electricity accident.

In explosive environments, filling, mixing, stirring and other conductive container, barrels, tons of barrels (bulk bag) and touchdown of the vessel;

Explosive environment isolated safety ground conductor.

Overfill Protection :https://www.youtube.com/watch?v=nuEcFvBJ3PQ

Static discharge reel Retractable static grounding reels

The Retractable Grounding Reel is used to substantially reduce the fire risk of floating roof tanks. It is reliable to prevent fires triggered by lightning currents.

To resist corrosion, the reel is constructed from 316L stainless steel and the copper cable is tinned.
The RGR is designed to be easily installed onto any existing tank, even those that are in service.
It is also easy to inspect and is designed to be very low maintenance.

Specifications:
Material: SS316L
Strap length: 20 meter (66ft)
Dimensions: 420x160x460mm
Weight: 24kgs
Warranty: one year

Retractable Grounding Reel :https://www.youtube.com/watch?v=UslVfhLc_SI

Wholesale all types of clamps,static grounding clamps

A lthough static isn't harmful by itself, when large amounts of it build up and suddenly discharge you can get dramatic and dangerous  is where antistatic products could help us .In this family ,Static Grounding Clamp there are ESD wire,ESD clamp,Antistatic wrist strap ,grounding shoes,foot straps,antistatic explosions,and other similar protecive series and safty products.

Static Grounding Clamp :https://www.youtube.com/watch?v=ABvnzbNroH4

Static Grounding Clamp Spiral static grounding clamp with alarm avoid static,nonsparking safety tools

The accumulation of static charges during the fueling transfer process can lead to costly explosions, fire and personnel injury. The Static Grounding Clamp with Alarm is designed to dissipate static accumulation and verify proper grounding. It is intrinsically safe for use in hazardous locations.

Specifications
Alarm: Audible alarm
Alarm Volume:＞90dB (measured at a 30cm straight distance)
Monitoring Set Point: 60 ohms
Power Supply: Integrated lithium battery (3.6V)
Expected Battery Life: 5 years
Battery Warranty: 5years
Certification: ExiaIICT6?
5m (16.4ft.) cable for one clamp.
3m (9.8ft.) for the other clamp.
Dimensions: 400mm×160mm×150mm

static grounding reel :http://www.kunlunequipment.com

Static Grounding Clamp with Alarm

Model:SA-RL

Features & Benefits:

The housing and base plate are constructed of stainless steel. The enclosed housing prevents the cable from being exposed to corrosive and harsh environments.
The self-storing cable design prevents personnel from being exposed to trip hazards. static grounding reel mechanism keeps the cable stored in safe organized manner.
An instant lock mechanism holds the cable at the desired extended length.
Standard S-RL model includes a 7m (23ft.) polyurethane jacketed stainless steel cable. Available in 15m(49ft.) options.

Specifications:
    The model SA-RL includes all of the features included in our S-RL models with the following
    special features:
    Alarm: Audible alarm
    Alarm Volume: ＞90dB (measured at a 30cm straight distance)
    Monitoring Set Point: 60 ohms
    Battery: Lithium battery (3.6V)
    Certification: ExiaIICT4
